Optimum performance with unique features.

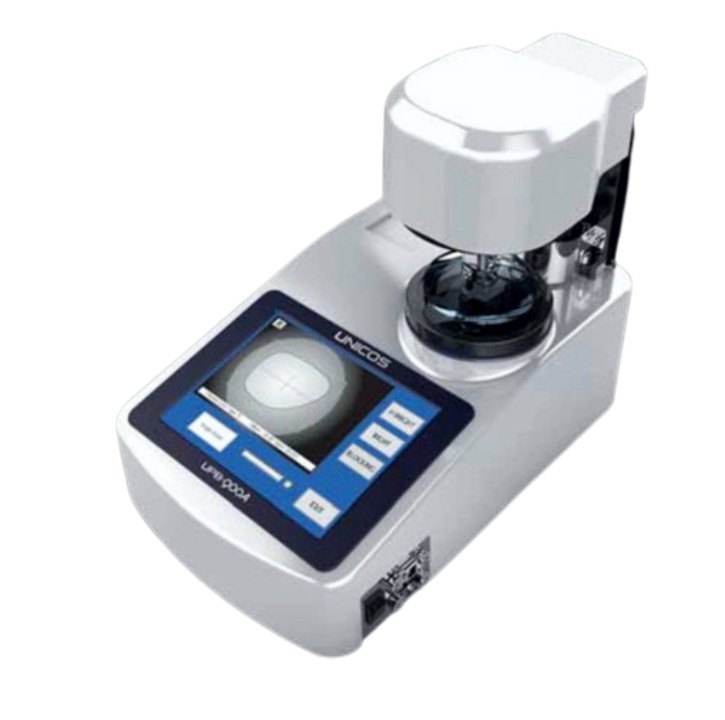

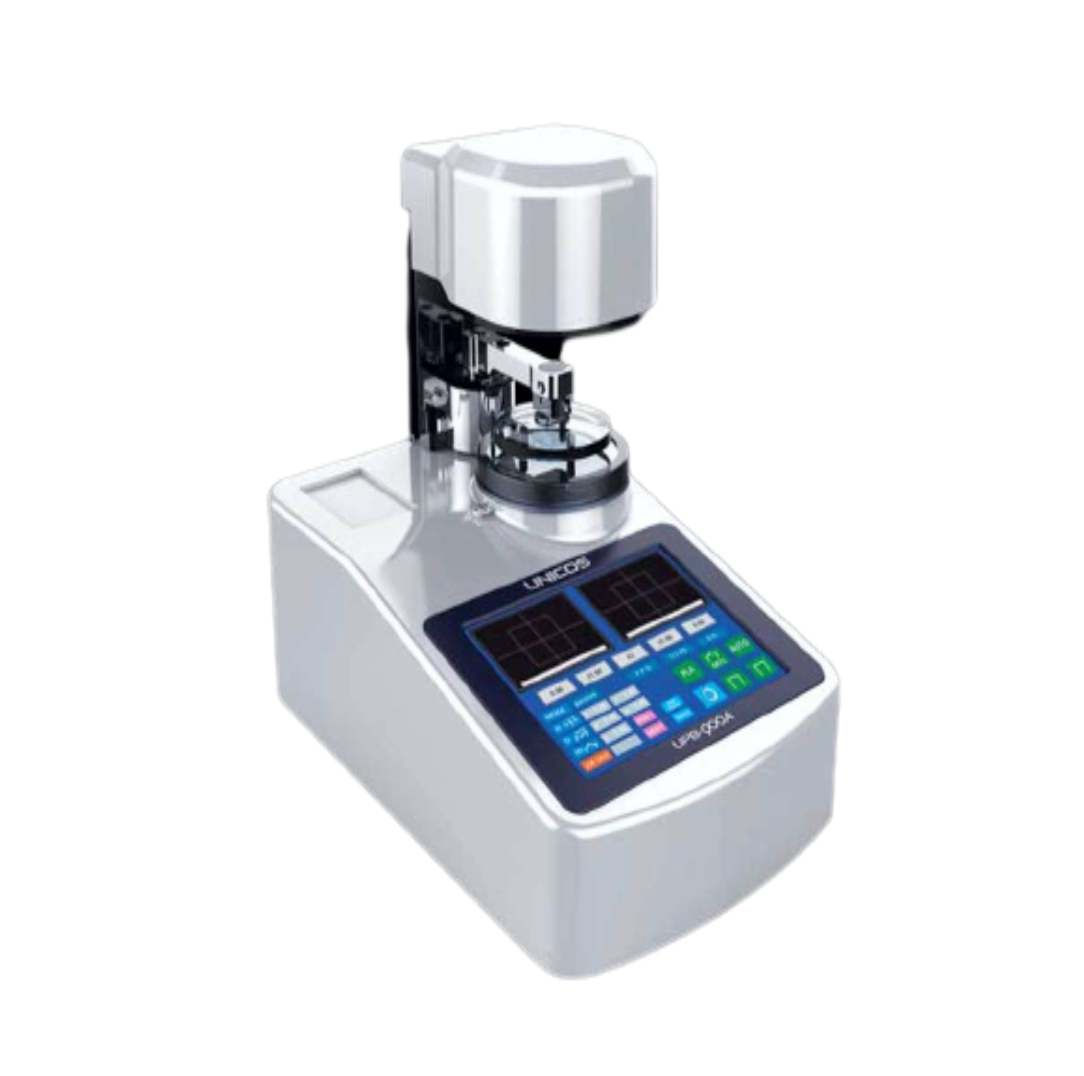

" As automatic blocker, high technology built-in image processing software which allows the automatic non-contact measuring of frame patterns or demo lenses has been applied to UPB-900A.
It also displays the XY coordinates of the drilling holes (max 10 per lens) or slots in relation with the blocking center. Rimless frames are not a headache any longer.
The UPB-900A uses a video camera to block lens accurately to be edged without any parallax error.
The UPB-900A uses an internal computer which can be used as a hub for connecting up to several edgers via cable link or EdgeNet™ Wireless communication.
200 jobs could be saved in the memory and recalled from any edger using a barcode reader.
| Tracing size | Frame : Φ 17 mm to Φ 90 mm Pattern : Φ 24 mm to Φ 75 mm |
| Measurement item | Shapes Pattern / Demo lens : 2-D circumference |
| Tracing time | Max 40 sec |
| Interface | PORT 1 (Selectable) - RS232C : For PC or Lens Edger - TCP/IP : For internet server |
| PORT 2 (Optional) - RS232C : For Barcode reader |
|
| Power supply | AC 100V-240V 50/60Hz |
| Power consumption | 50VA |
| Dimension / Weight | 240 (W) X 300 (D) X 200 (H), 10 Kg |
| Working mode | OMA Packed binary |
| Standard accessories | Pattern holder, Suction cup Standard frame Standard pattern Power code RS232C NULL Modem cable |
Design and details are subject to change without prior notice for it’s improvements.
