econom® – diagnostic set for eye and ear, nose and throat treatment (ENT)

Name: mercooptical Optical Corp – Econom® – Diagnostic Set For Eye And Ear, Nose And Throat Treatment (ent)
Brand: mercooptical Optical Corp

Diagnostic Devices For Eye And Ent Get More Information Inquiry About this product

econom® – diagnostic set for eye and ear, nose and throat treatment (ENT)

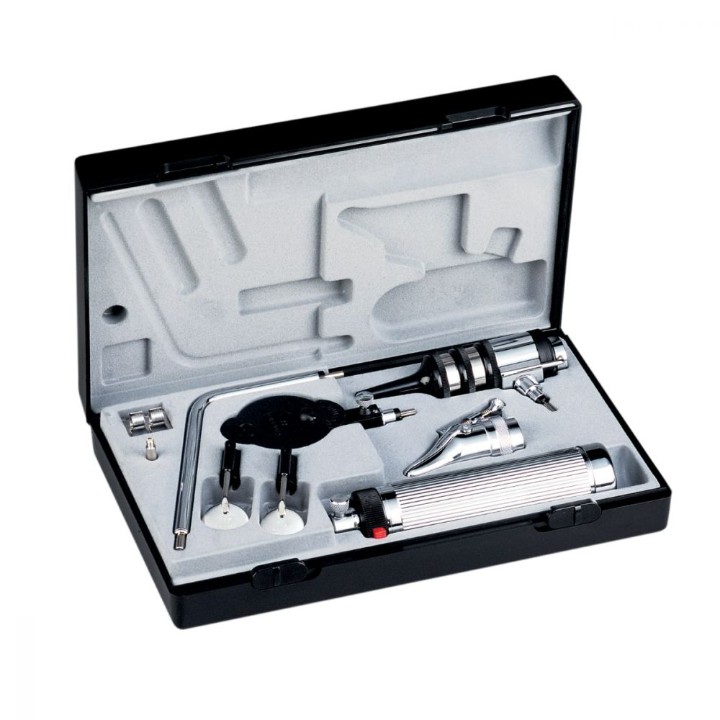

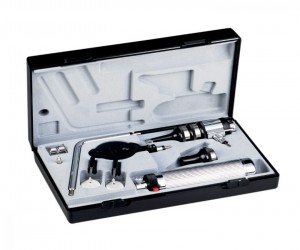

The Riester econom® is a complete diagnostic set for eye, ear, nose and throat treatment. A choice of two econom® sets is available: with expandable nasal speculum or with Ø 9 mm (0.35 in) nasal speculum. These instruments are durable and user-friendly.

Portable set of diagnostic instruments for ENT and Ophthalmology

The Riester econom^® is a versatile diagnostic set, including high-quality diagnostic instruments for ENT and Ophthalmology in one portable package. Designed as handy examination assistant, each set has various combinations. A powerful yet cost-effective diagnostic kit is safely delivered to the hard case with a safety sliding lock.

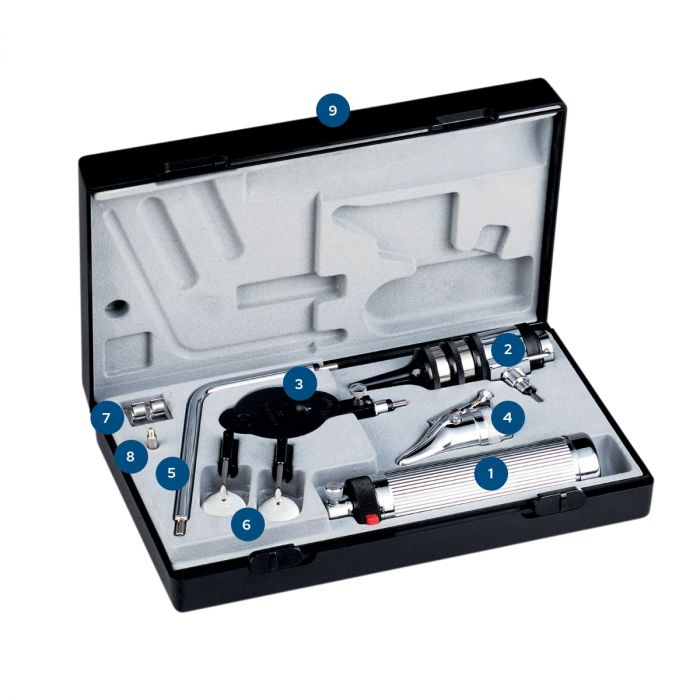

Parts of the econom^® diagnostic set

Handle
Otoscope Head
Ophthalmoscope Head

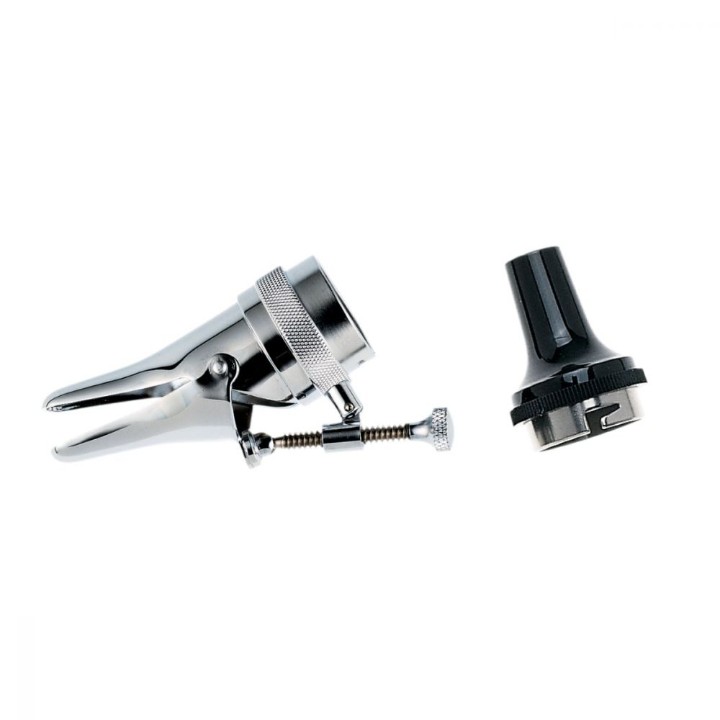

Nasal speculum or Nasal specula 9 mm

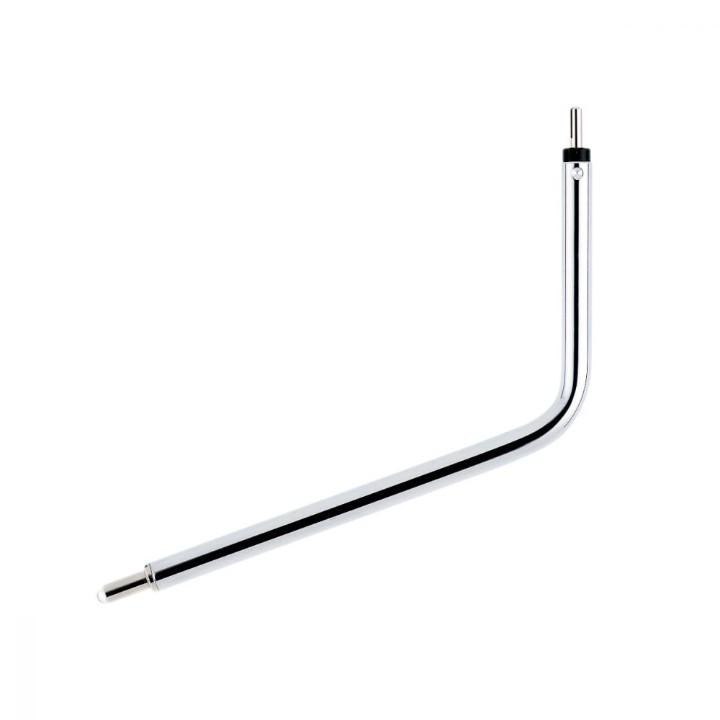

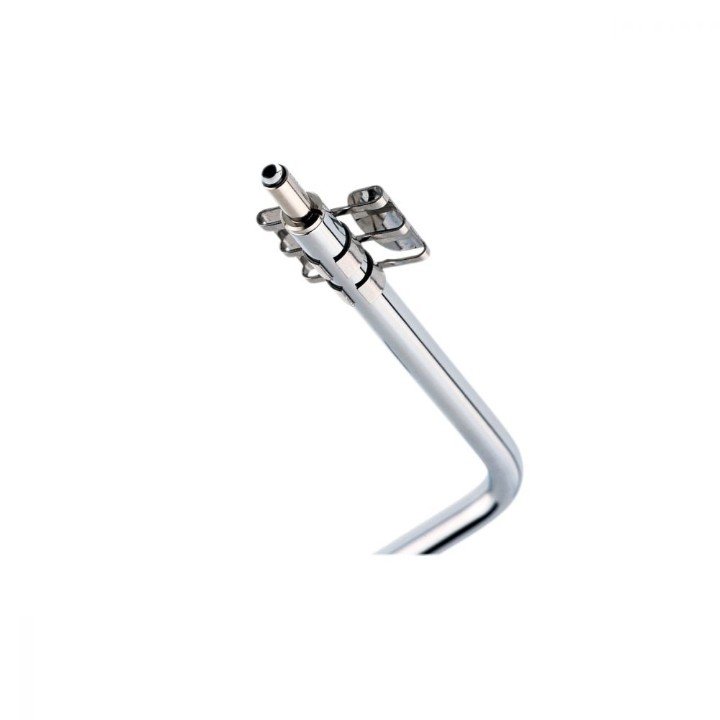

Bent arm illuminator

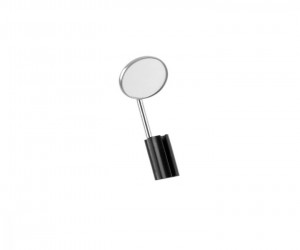

2 Laryngeal mirrors

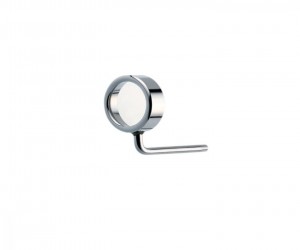

Tongue blade holder
Lamp
Case

Features and benefits

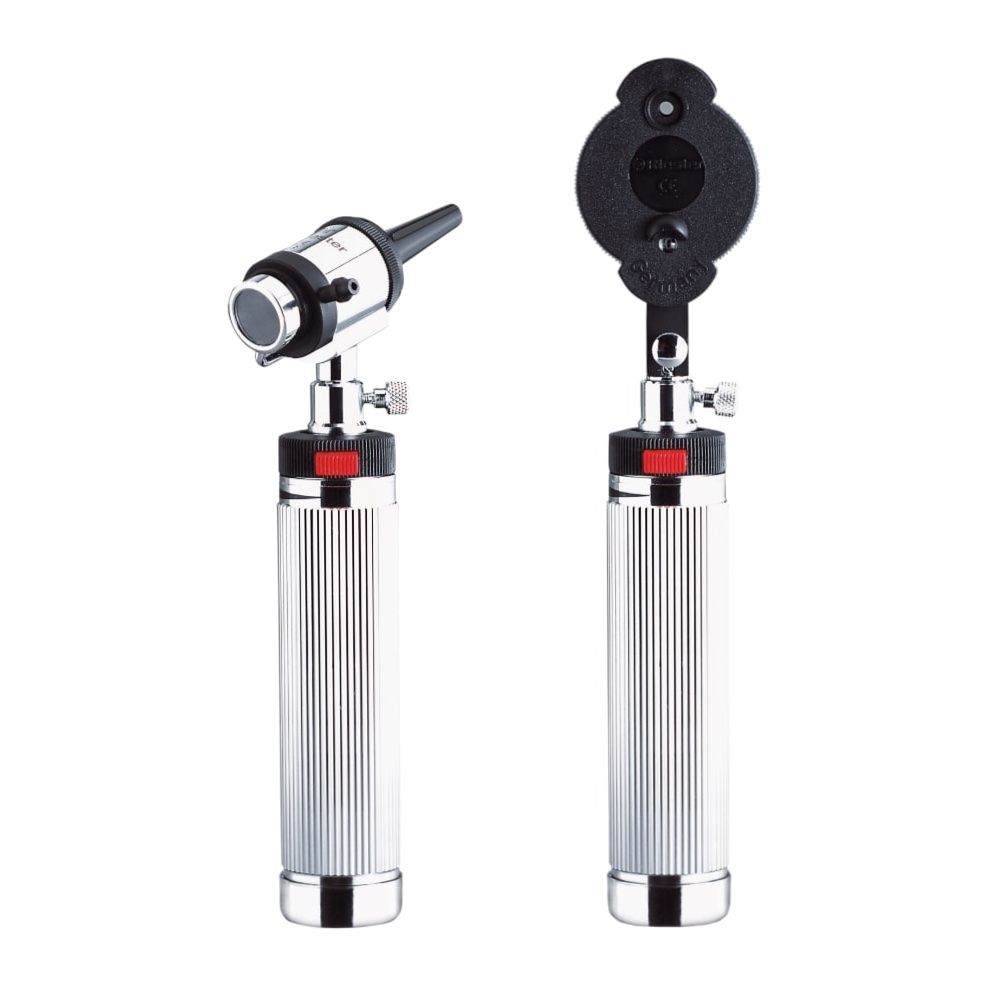

uni^®I Otoscope

Removable magnifying lens with 4-fold magnification can be swivelled to both sides
Removable cover glass for insertion of external instruments
Suitable for nasal examinations when using the 9 mm speculum
Sealed system for performing pneumatic otoscopy
Including ear specula with stainless steel fitting, 2, 3, and 4 mm
Available with 2.7 V vacuum, XL 2.5 V xenon or XL 3.5 V xenon lamp

uni^® II May-Ophthalmoscope

Available with 2.5V Xenon or 2.5V Xenon lamp
Durable and sturdy ABS plastic head for long service life
Plug-in connector for fast and secure attachment to handle
Focusing wheel with corrective lenses from 0 to +20 or 0 to -20 dioptres
Aperture with large circle for examination for the fundus of the eye

Specifications: econom-diagnostic-set-for-eye-and-ent

Product details

The lamp for uni^® I, II, III

Vacuum 2.7 V (2.5 V is specified) 300 mA, mean life span 15 h
Xenon 2.5 V 700 mA, mean life span 15 h
Xenon 3.5 V 700 mA, mean life span 15 h

Dimensions	econom^® in Case: Length x Width x Height = 230 mm x 140 mm x 46 mm
Power supply	Optional 230 V or 120 V version
Ambient temperature	0° to +40° C
Relative humidity	30% to 70% non-condensing
Storage/ Transport ambient temperature	-10° to +55°C
Storage/ Transport relative humidity	10% to 95% relative humidity
Air pressure/ Transport relative humidity	800 hPa - 1100 hPa
