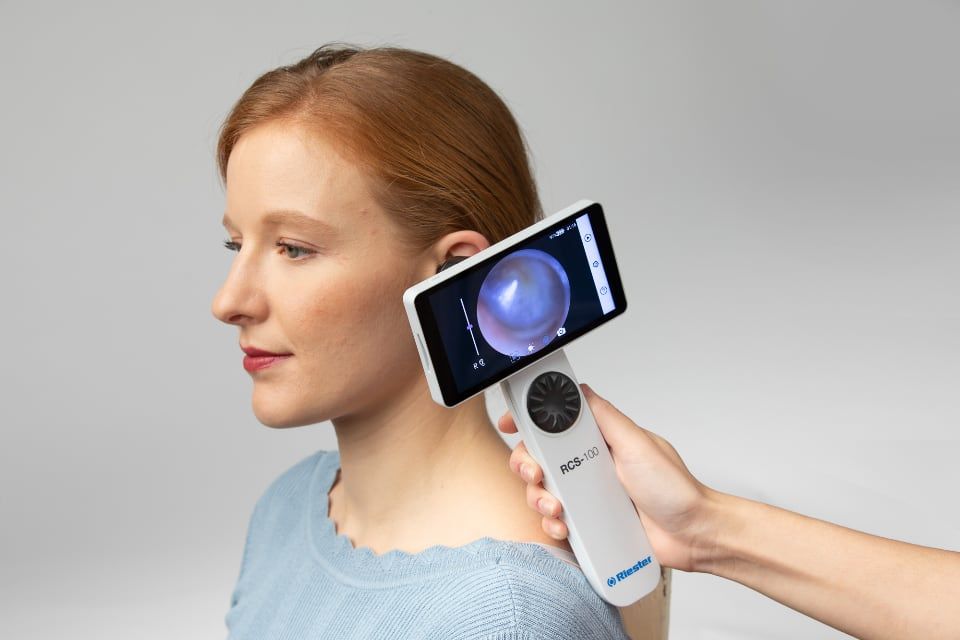

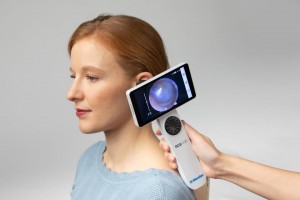

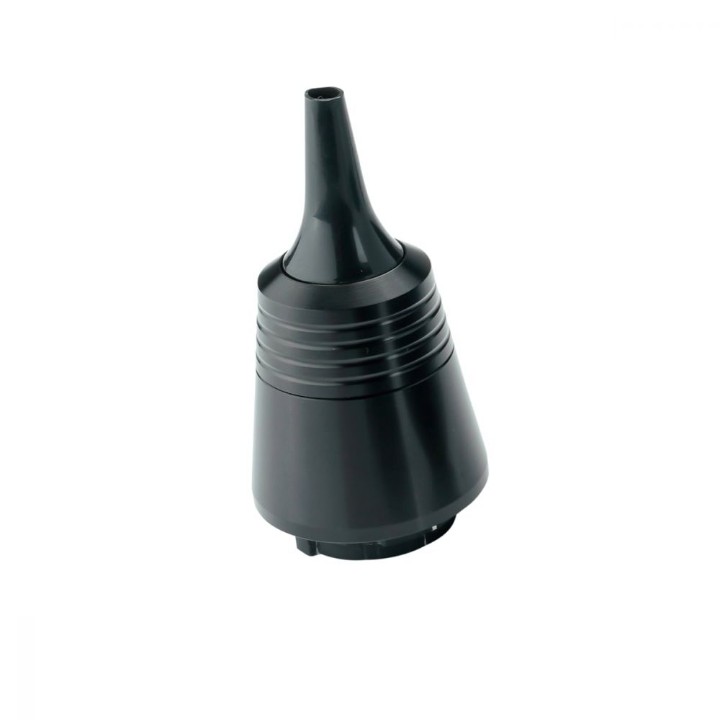

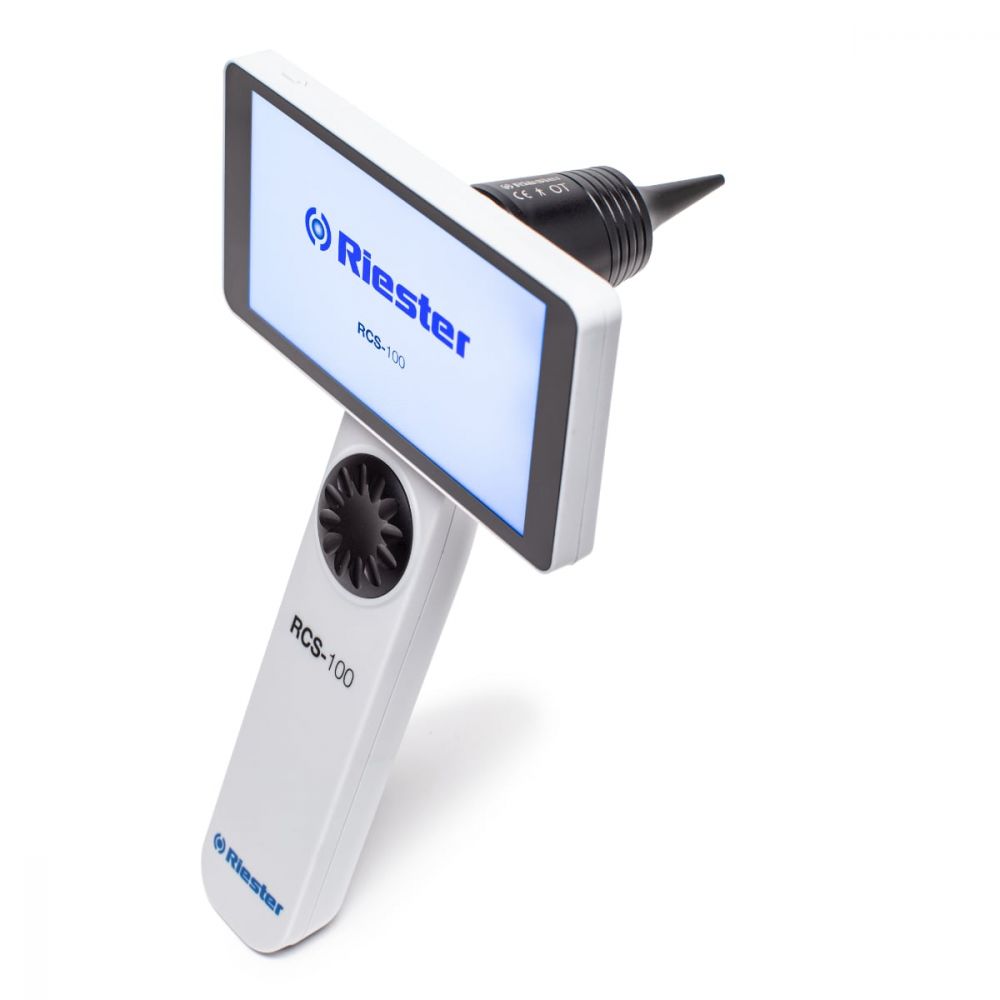

The RCS-100 Medical Camera System with otoscope lens and LED light provides an enhanced view of the auditory canal, as well as 6 x magnification displayed on the 5” LCD screen.
ENT & Audiology News notes: The ability to capture and record photographic images of tympanic membranes in routine clinical practice has several distinct advantages over hand-drawn representations. Photographs are helpful when explaining unfamiliar concepts to patients and can be a valuable aid when discussing treatment options. Photo documentation is essential for accurately monitoring evolving pathologies, such as tympanic membrane retraction, where subtle changes over time could be easily missed or overlooked when relying on drawings alone. Finally, photographs also provide a precise, contemporaneous record for medico-legal purposes. 1
| Dimensions | 73.5mm x 40.0mm x 40.0mm |
| Weight | 96g, 3.39oz |
| F/# (focal length/width) |
2.9 |
| Magnification on display | 6x |
| Field of view | 12mm Ø field of view at 25mm distance from viewing object (with 4mm specula size) 9mm Ø field of view at 15mm distance from viewing object (with 4mm specula size) 8mm Ø field of view at 10mm distance from viewing object (with 4mm specula size) |
| Max object distance | 15mm, at max object distance FOC diameter: 15mm |
| Depth of field scope | 10mm |
| Lighting source | Natural light LED |
| LED colour temperance | 4000k |
| Disposable and reusable specula | 2mm (0.08in), 3mm (0.12in), 4mm (0.16in), 5mm (0.2in) |
| LCD screen | 5“ full HD colour TFT-LCD display 1.280 x 720 pixel including scratch proof cover |
| Focus | Automatic/manual |
| Image/Video format | Picture: JPEG / Video: MP4 |
| Battery | 3.6 V 2600 mAH 1S1P 18650-li-battery |
| Adaptor | Input: 100 ~ 240 V50 ~ 60 Hz, 0.3 A Output: DC 5 V/2 A |
| CMOS sensor | 8 MP (megapixels) |
| USB | OTG type C USB, UVC |
| RAM | 2 GB LPDDR3 |
| ROM | 16 GB |
| Optional | Extended memory 16 GB Wifi SD Card |
| Start time | < 30 sec. |
| Wake up time | < 5 sec. |
| Stand by time approx. | 7 days |
| Ambient temperature | + 10° C to + 40° C |
| Operating time | Video 3.5 hours |
| Charging time | 3 hours |
| Relative humidity | 15 % to 95 % rel. non condensing |
| Storage | 0° C to + 45° C |
| Cleaning control unit and charging adaptor | Soft cloth with alcohol (70 % ethyl alcohol) |
| Cleaning optical lenses | Cleaning cloth or a lens cleaning tissue (e.g. THORLABS) |
| Handset weight | 292 g |
| Handset dimensions mm (in) | 225 x 135 x 45 (8.86 x 5.31 x 1.77) |
