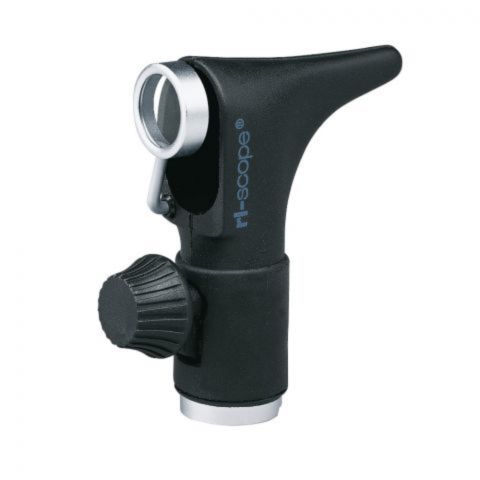

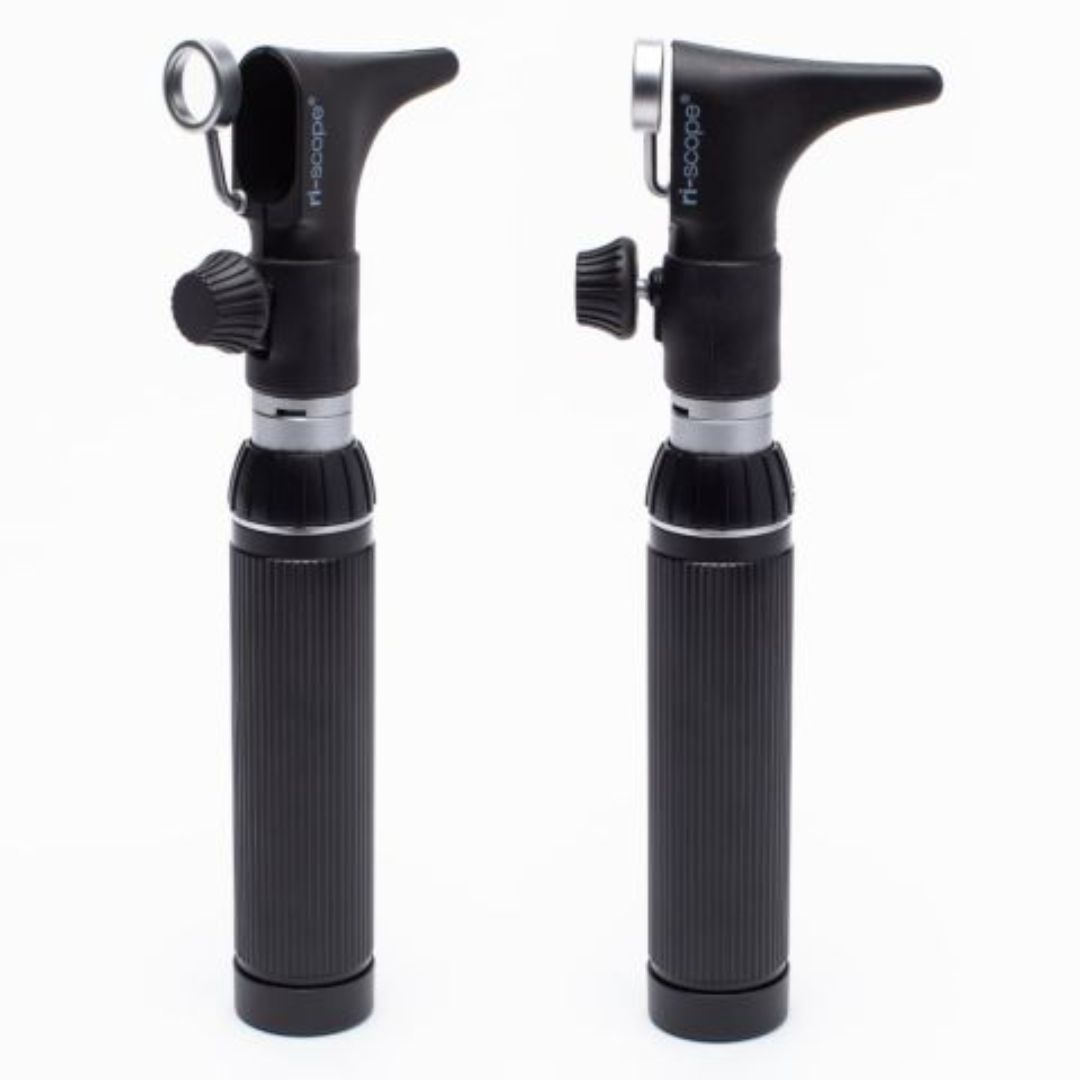

ri-scope® F.O. Nasal Speculum

One of the many accessory heads available for the ri-scope® L handle, this is the fibre optic Xenon or LED illumination nasal speculum. ri-scope® F.O. nasal speculum is hand-held instrument for diagnosis of the nasal meatus and a wide range of power supply options.

For diagnosis of the nasal meatus

ri-scope® F.O. nasal speculum head is also designed for use with the ri-former® Diagnostic Wall System with an anti-theft device. It has Fiber Optic 3.5V LED Illumination. His high-quality fibre optic light-wave conductor is for optimal transmission and beaming of light. It provides an exam light that is similar to day light.

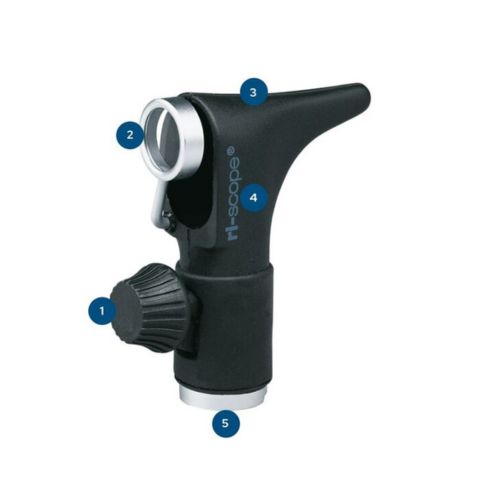

ri-scope® F.O. nasal speculum details

Screw to expand the speculum
2.5x magnification swivel lens
Expandable speculum
Internal fibre optics
Bayonet fitting to quickly switch instrument heads.

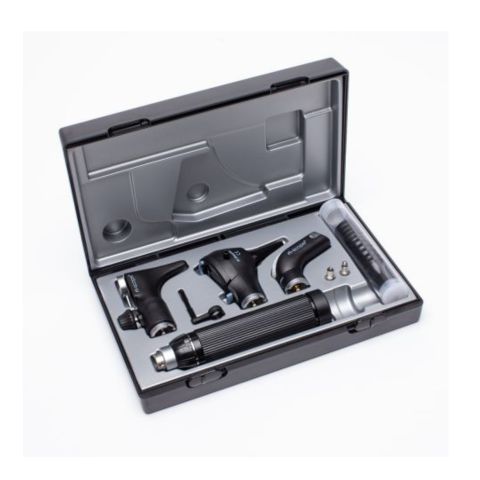

The e-scope pocket otoscope, sets and accessories

ri-scope® F.O. nasal speculum

ri-scope® E.N.T.

ri-scope® praktikant

ri-scope® de luxe

Features and benefits

High-quality fibre optic light wave conductor for optimal beaming and transmission of the light. In combination with the lamp this provides cool examination light similar to daylight.
Swivelling and removable lens with 2.5-fold magnification
Slow and controlled expansion of the speculum by turning on the screw adjuster, fast expansion by pressing down on the screw adjuster
Impact resistant casing made of glass-fibre reinforced plastic

Specifications: ri-scope F.O.

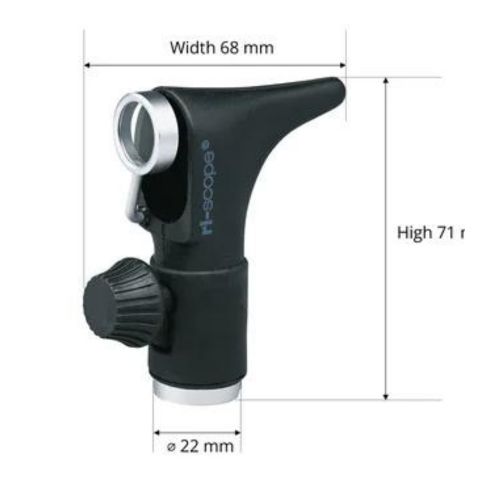

Dimensions

The lamp for ri-scope® F.O. nasal speculum	Nasal speculum XL 2.5 V
	2.5 V 750 mA mean life span 15 h
	Nasal speculum XL 3.5 V
	3.5 V 720 mA mean life span 15 h
	Nasal speculum LED 2.5 V
	2.5 V 280 mA mean life span up to 50,000 h1
	Nasal speculum LED 2.5 V
	3.5 V 280 mA mean life span up to 50,000 h1
Ambient temperature	0° to +40° C
Relative humidity	30% to 70% non-condensing
Storage/ Transport ambient temperature	-10° to +55°C
Storage/ Transport relative humidity	30% to 85% non-condensing
Air pressure/ Transport relative humidity	800 hPa - 1100 hPa
