Uni® I Otoscope, uni II May-Ophthalmoscope, uni III Otoscope May-Ophthalmoscope

Name: mercooptical Optical Corp – Uni® I Otoscope, Uni Ii May-ophthalmoscope, Uni Iii Otoscope May-ophthalmoscope
Brand: mercooptical Optical Corp

Diagnostic Devices For Eye And Ent Get More Information Inquiry About this product

Uni® I Otoscope, uni II May-Ophthalmoscope, uni III Otoscope/May-Ophthalmoscope

The uni®I Otoscope, uni®II May-Ophthalmoscope and uni®III Otoscope/May-Ophthalmoscope: These instruments are durable and user-friendly.

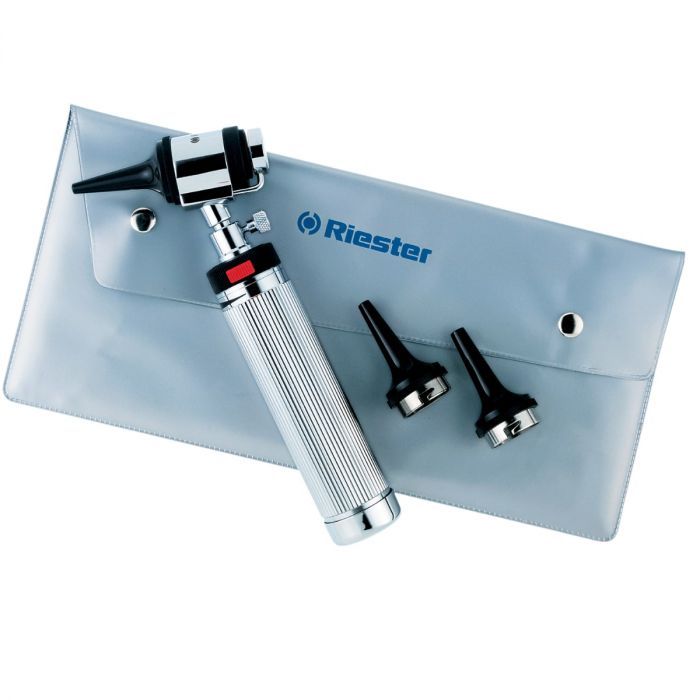

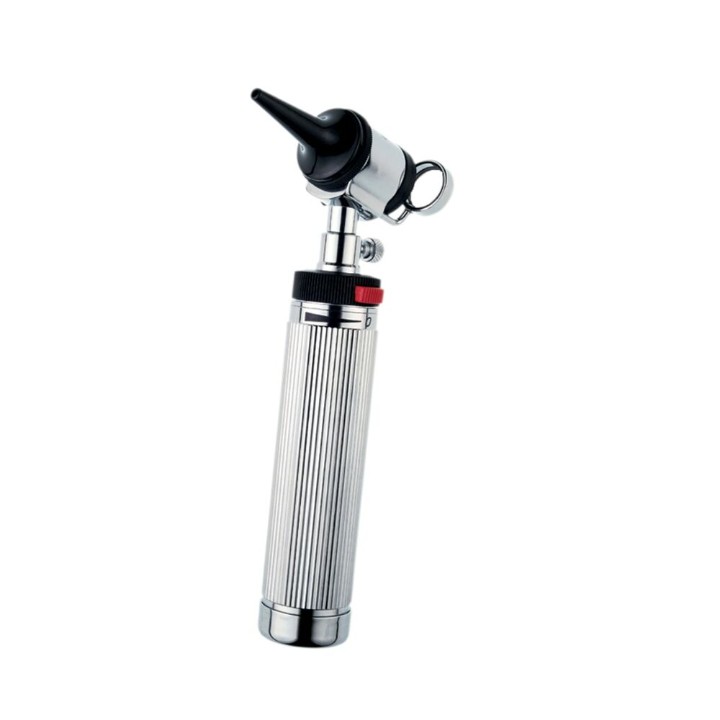

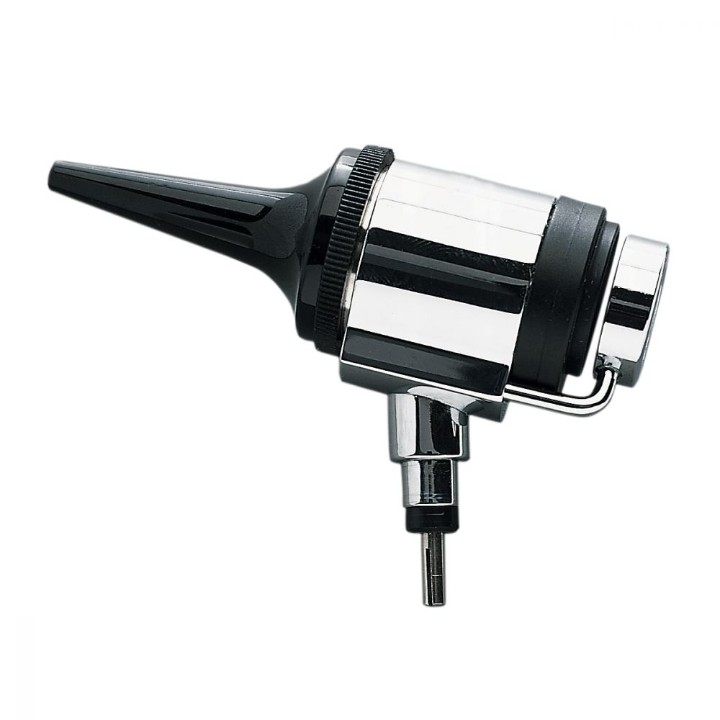

uni^®I Otoscope

Removable magnifying lens with 4-fold magnification can be swivelled to both sides
Removable cover glass for insertion of external instruments
Suitable for nasal examinations when using the 9 mm speculum
Sealed system for performing pneumatic otoscopy

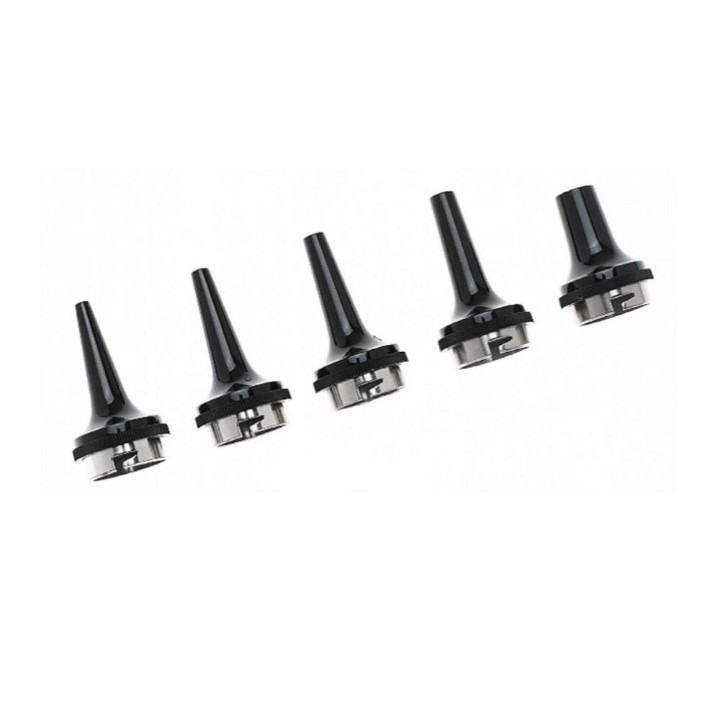

Including ear specula with stainless steel fitting, 2, 3, and 4 mm
Available with 2.7 V vacuum, XL 2.5 V xenon or XL 3.5 V xenon lamp

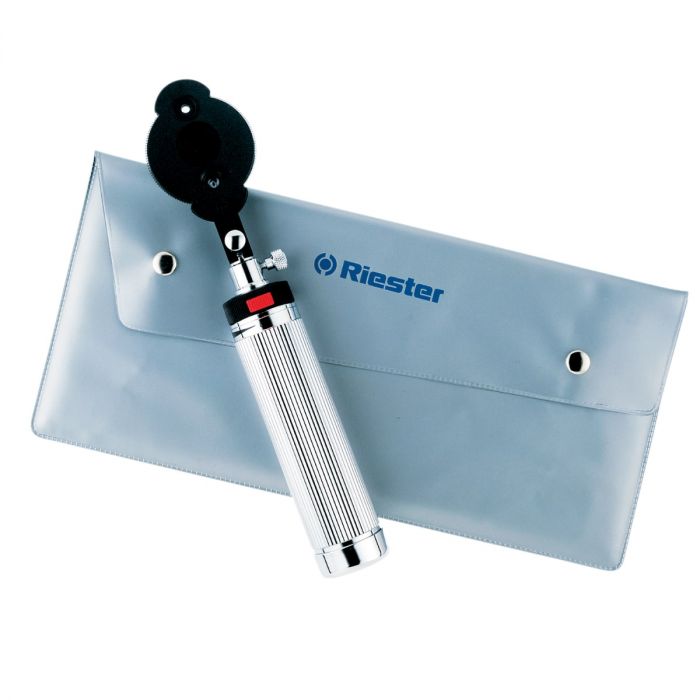

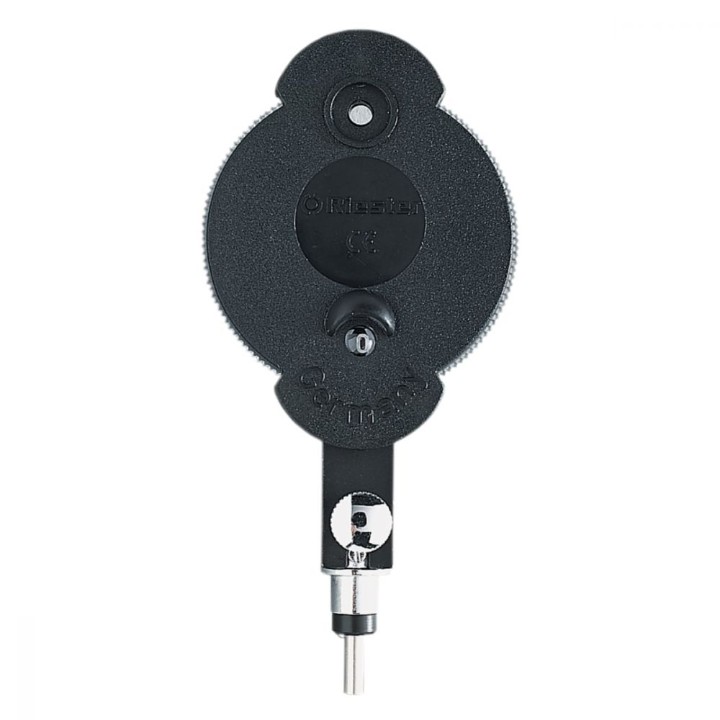

uni^®II May-Ophthalmoscope

Available with 2.5V Xenon or 2.5V Xenon lamp
Durable and sturdy ABS plastic head for long service life
Plug-in connector for fast and secure attachment to handle

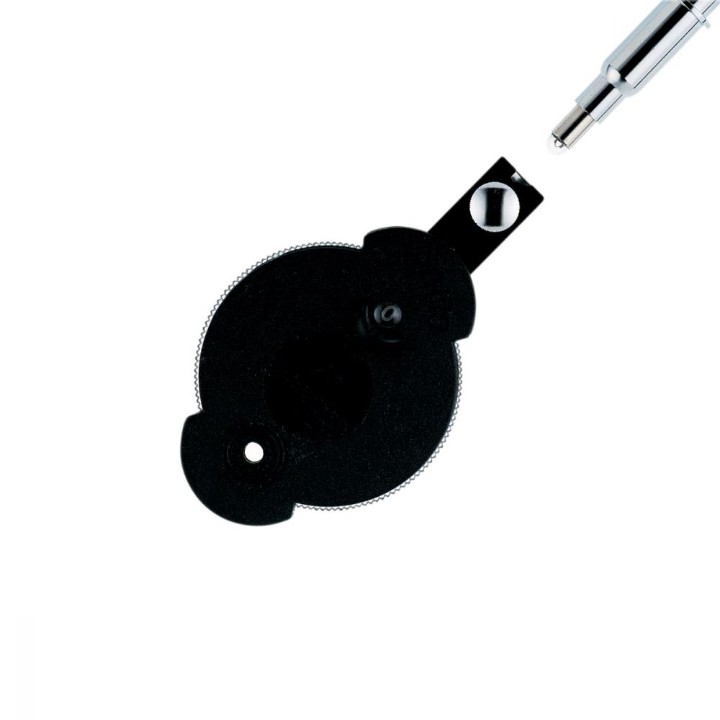

Focusing wheel with corrective lenses from 0 to +20 or 0 to -20 dioptres
Aperture with large circle for examination for the fundus of the eye
The corrective lenses from +20 to -20 dioptres guarantee a focus-sed image even in case of strong refractive anomalies.

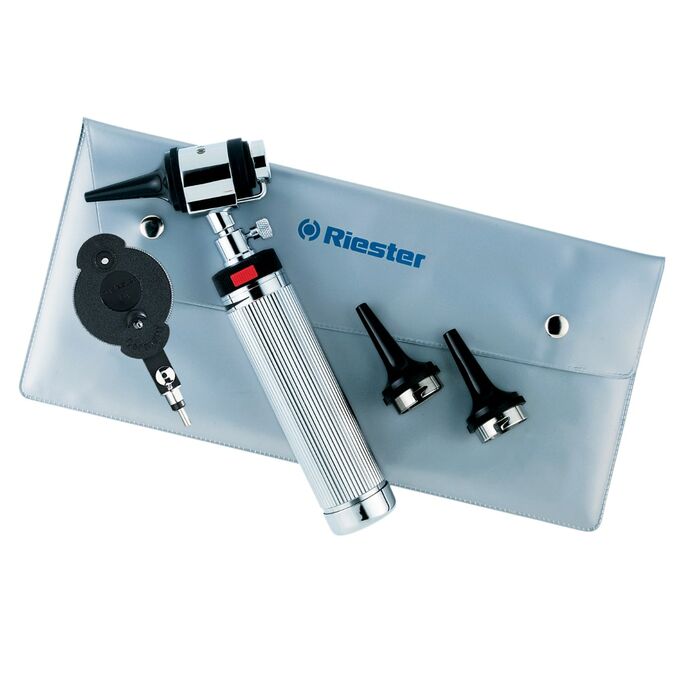

uni^®III Otoscope and May-Ophthalmoscope

All models are fitted with battery handle type C for two batteries type C, and with rheostat for regulating the light intensity.

Specifications: uni-l-ll-lll

Product details

: Uni I, II, III

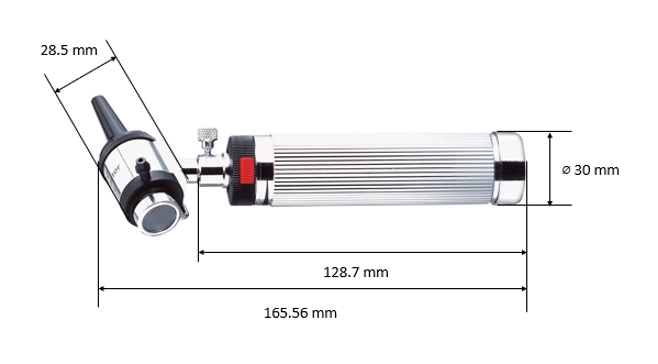

Dimensions: uni^®I Otoscope

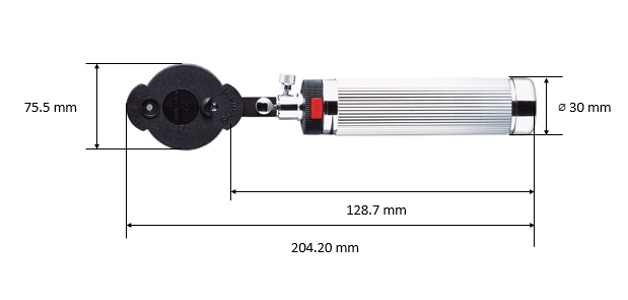

: uni^®II May-Ophthalmoscope
The lamp for uni^® I, II, III: Vacuum 2.7 V (2.5 V is specified) 300 mA, mean life span 15 h
Xenon 2.5 V 700 mA, mean life span 15 h
Xenon 3.5 V 700 mA, mean life span 15 h
Power supply: Optional 230 V or 120 V version
Ambient temperature: 0° C to + 40° C
Relative humidity: 30% to 70% non-condensing
Storage/ Transport temperature: -10° to + 55°
Storage/ Transport relative humidity: 10% to 95% relative humidity
Air pressure: 800 hPa - 1100 hPa
