ri-integral Fibre Optic (F.O.) Laryngoscopes

Name: mercooptical Optical Corp – Ri-integral Fibre Optic (f.o.) Laryngoscopes
Brand: mercooptical Optical Corp

Laryngoscopes Get More Information Inquiry About this product

ri-integral Fibre Optic (F.O.) Laryngoscopes

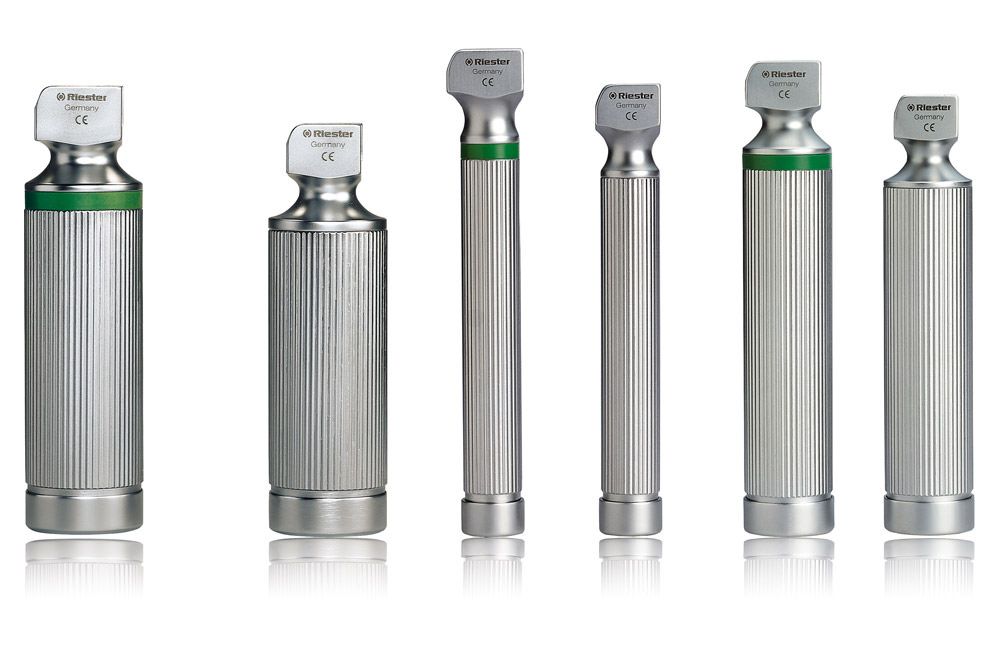

Riester’s fibre-optic Laryngoscopes offer a high quality light source which helps improve the visualization of the larynx during intubation. This coupled with the rechargeable battery packs built into the handle give the clinician the confidence to perform the intubation under a wide range of circumstances and patient types.

Features and benefits

With integrated Fiber Optics (F.O.) light conductor.
Particularly easy to clean, as there are no external conductors and openings to become contaminated!
Outstanding light intensity through XL + LED xenon illumination and strong fiber bundles.
Blade design for simple intubation.
All blades are compatible with handles complying with ISO 7376.

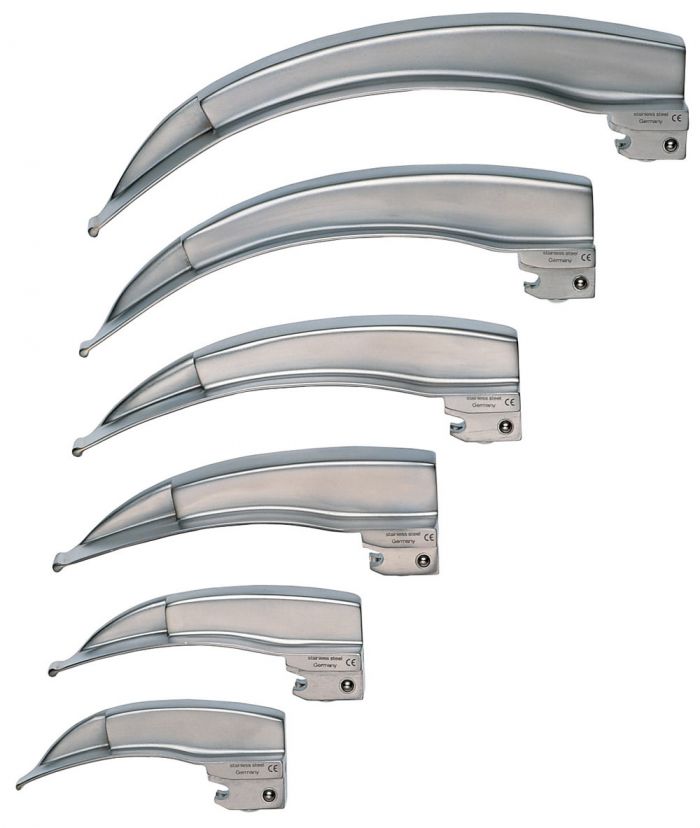

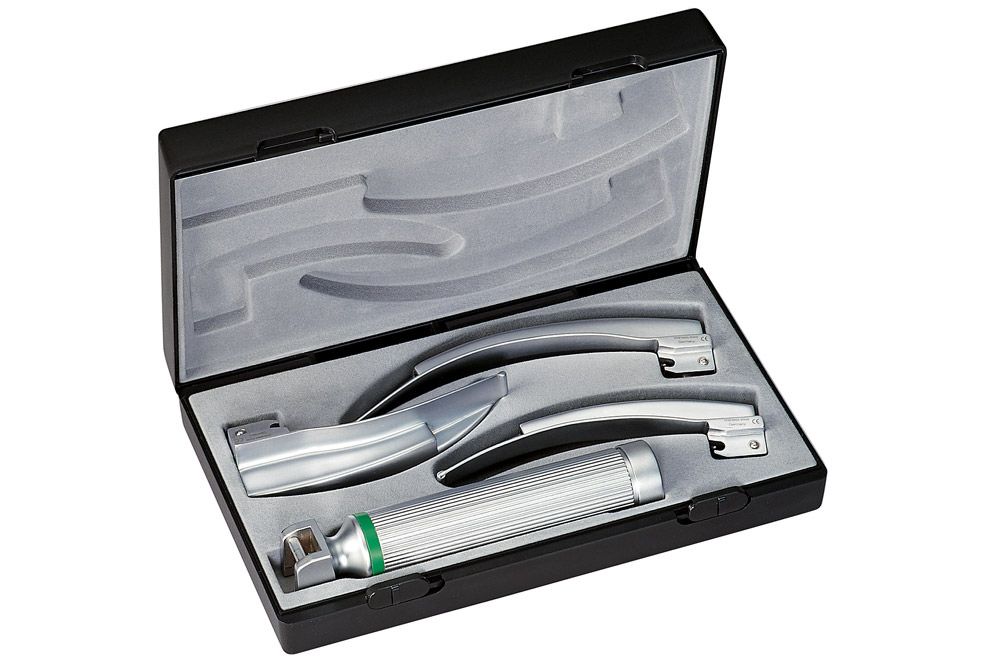

MACINTOSH F.O. BLADE

The clear design of the Macintosh Fiber Optic blade with no edges or corners simplifies cleaning and autoclaving.
Exceptionally high light intensity with XL + LED illumination.
Extra-strong fiber bundles with a cross-section of 17.3 mm ensure the best possible light intensity and durability.
Laser welded, corrosion resistant
Children; Adults

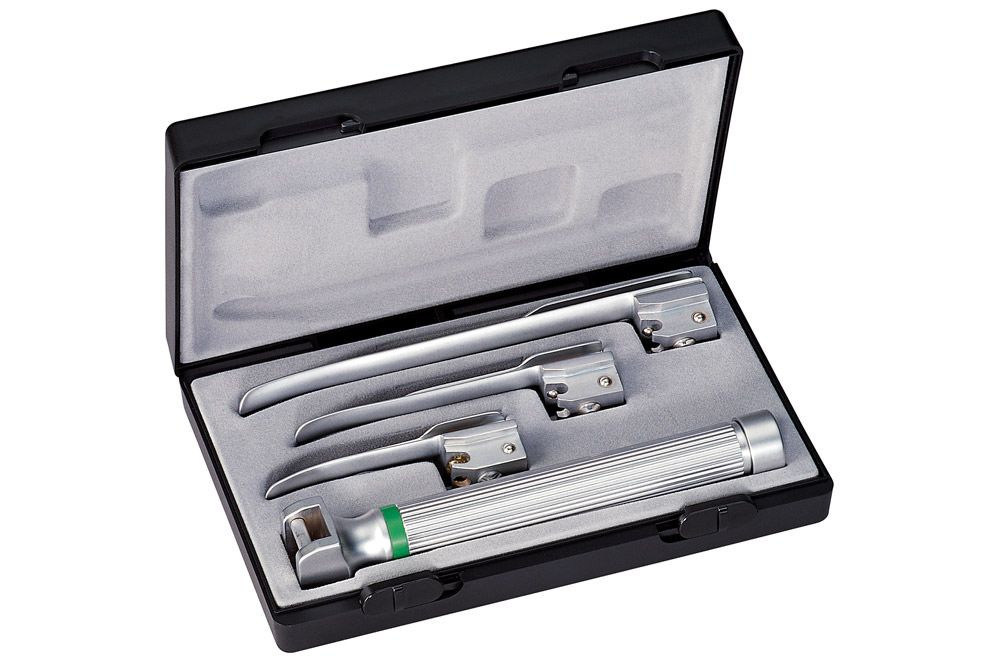

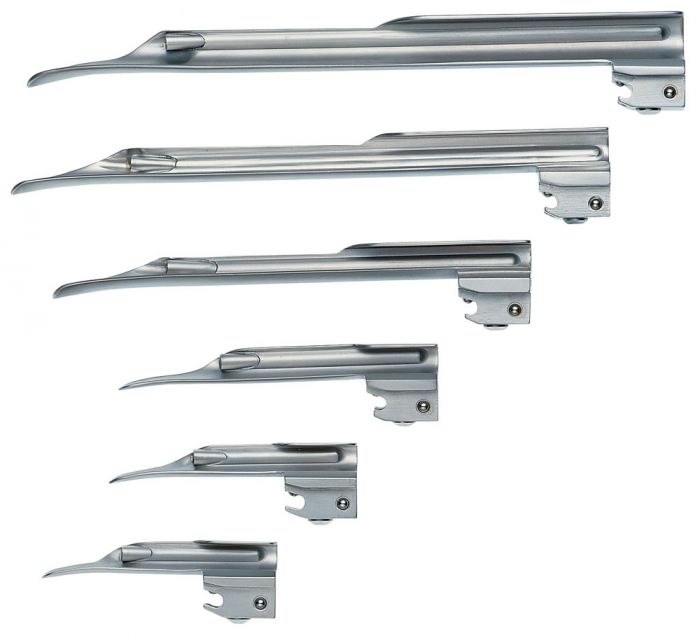

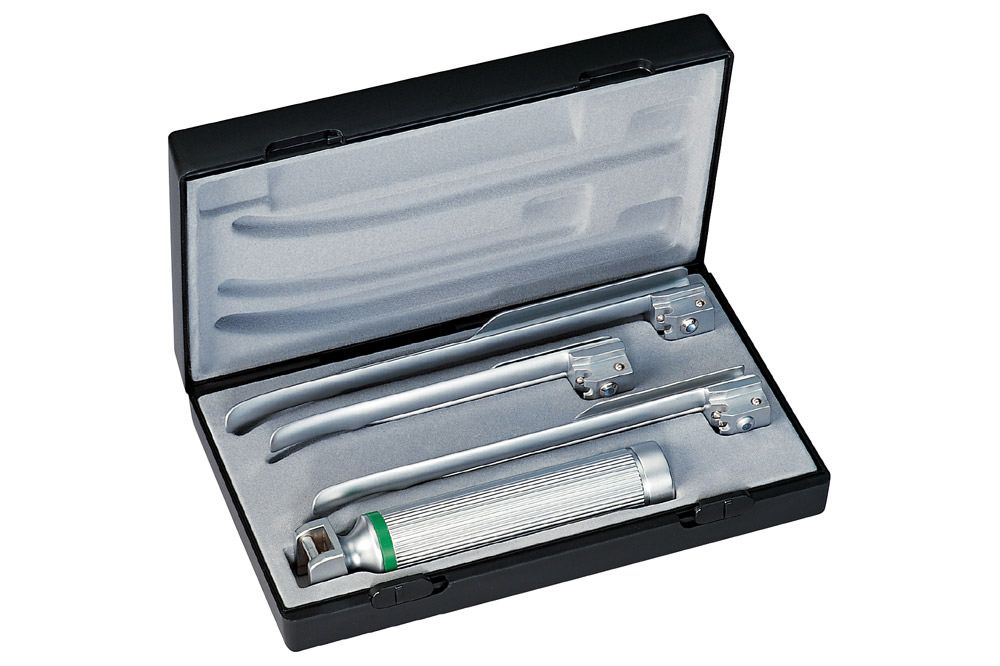

MILLER F.O. BLADE

The flat design of the F.O. blade improves visibility considerably and simplifies intubation.
Atraumatic blade design.
Blade size 00 for neonates.
Laser welded, corrosion resistant.
Neonates; Children; Adults

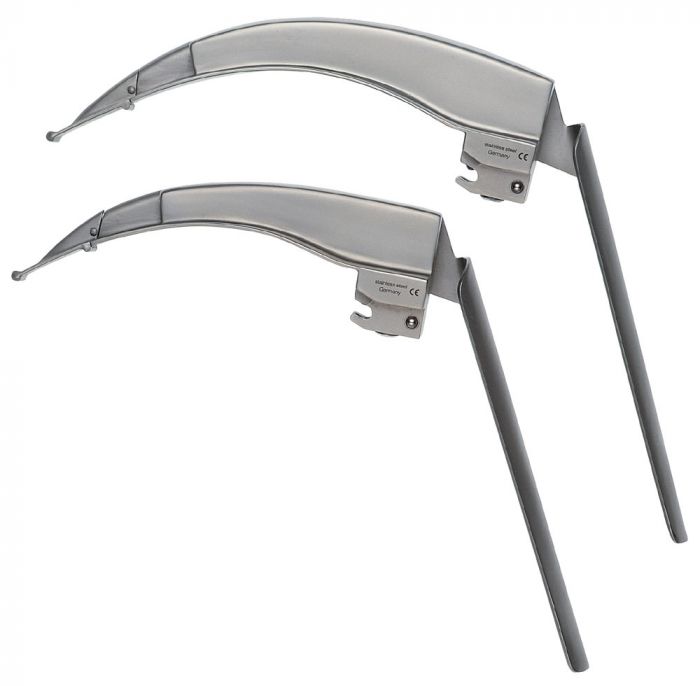

FLEX MACINTOSH F.O. BLADE

Flexible blade with integrated F.O. light conductor.
Bendable distal end.
Outstanding light intensity with XL + LED illumination.
Improved light transmission through extra-strong fiber bundles.
New blade design for simple intubation provides excellent visibility of the inlet of the larynx and vocal chords, reduced pressure in the pharyngeal area and minimised risk of injury.
Available either in sizes 3 or 4.
Adults

Specifications: ri-integral-fibre-optic (F.O.)-Laryngoscopes

Product details

Dimensions	ri-integral MACINTOSH F.O. blade 81 mm; 95 mm; 116 mm; 135 mm; 155 mm; 178 mm ri-integral MILLER F.O. blade 76 mm; 80 mm; 103 mm; 154 mm; 193 mm; 211 mm ri-integral FLEX MACINTOSH F.O. 132 mm; 154 mm
The lamp for Laryngoscope	Lamp, small, warm light 2.7 V 300 mA, mean life span 20 h Lamp, large, warm light 2.7 V 300 mA, mean life span 20 h Lamp, cold light XL 2.5 V 680 mA, mean life span 20 h Lamp, cold light XL 3.5 V 700 mA, mean life span 20 h Lamp, cold light LED 2.5 V 120 mA, mean life span 20000 h Lamp, cold light LED 3.5 V 280 mA, mean life span 20000 h
Ambient temperature	0 ° to +40 °C
Relative humidity	15% to 90% non-condensing
Storage/ Transport temperature	-20°C to 50°C
Storage/ Transport relative humidity	15% to 85% non-condensing
Air pressure	620 hPa - 1060 hPa
