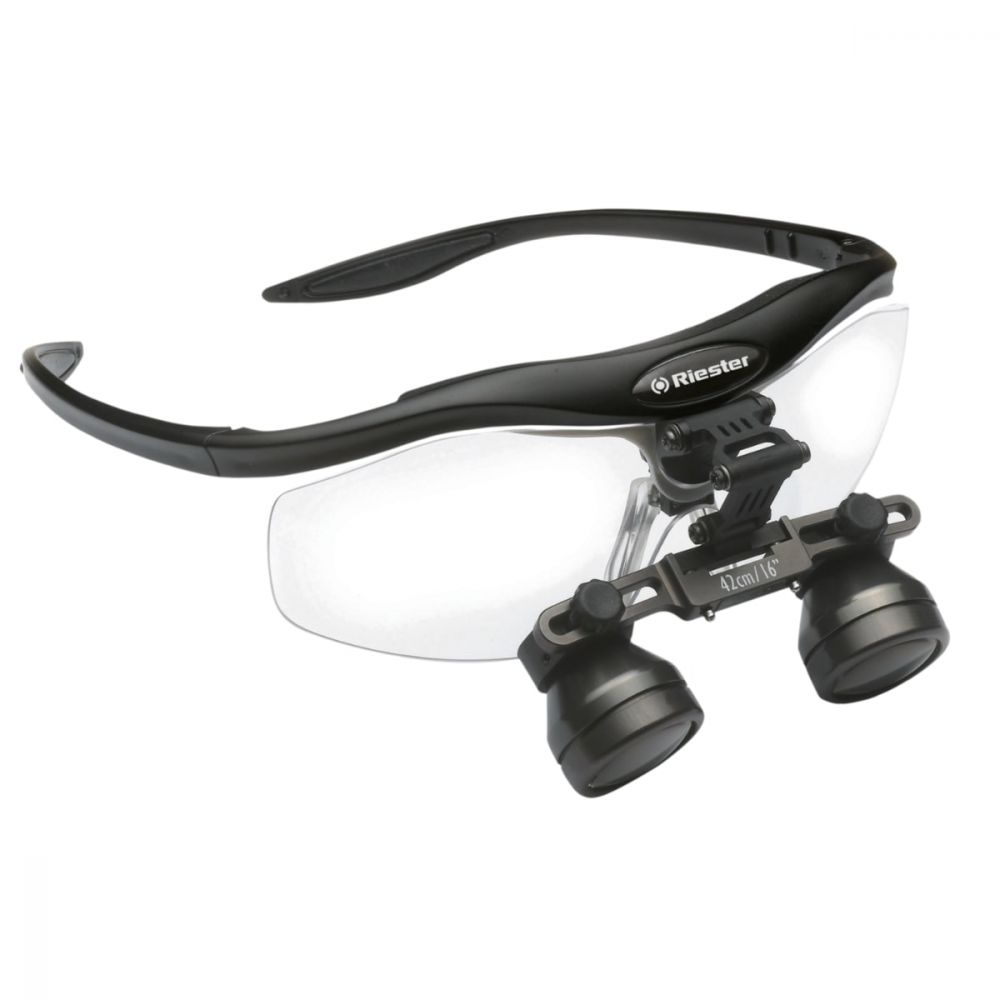

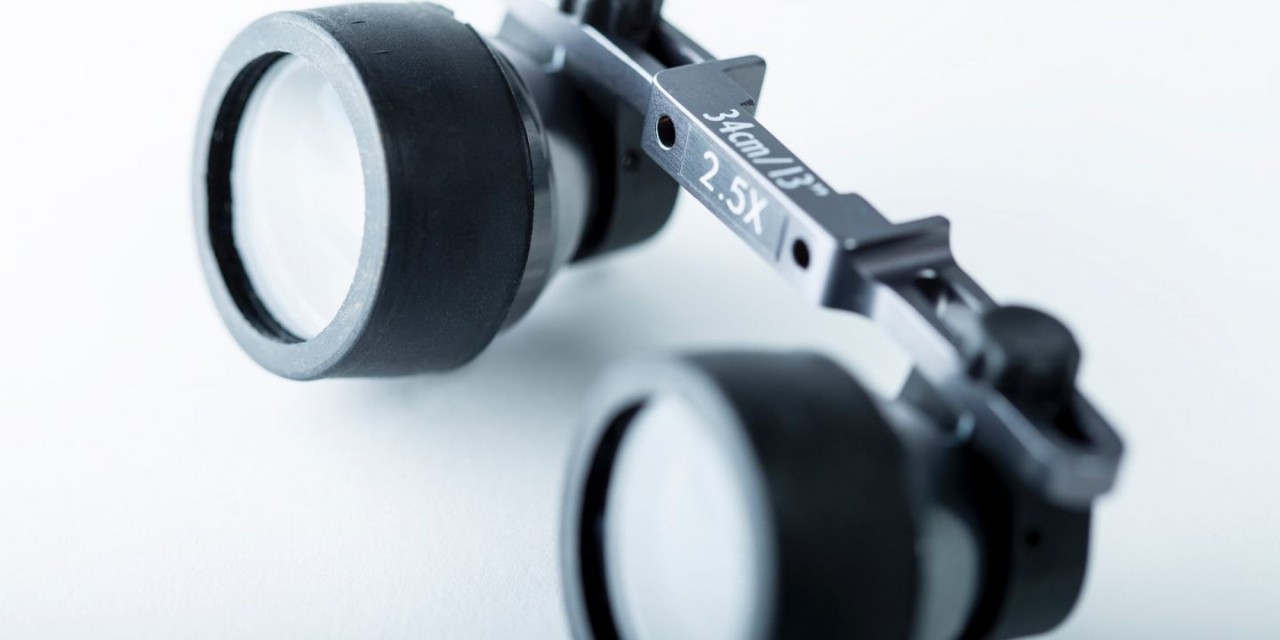

SuperVu Galilean binoculars with 2.0, 2.5 and 3.0 x magnification which allows for more distance between the provider and the patient, making patients feel visibly better and more relaxed. The SuperVu Galilean binocular loupes offer excellent optical features with respect to the field of view: (+/- 10 %).
The SuperVu Galilean binocular loupes offer a carefully calculated blend of comfort, clarity and field of view an accomplished all-rounder. Multiple magnification levels allow a more precise diagnosis and thus an exact planning for the further treatment. The product is suitable for orthopaedics, ENT, urology, obstetrics & gynaecology, plastics and general dentistry.
The SuperVu Galilean binocular loupes offer excellent optical features with respect to the field of view: (+/- 10 %).
| Binocular Loupes | Magnification | Working distance | Field of view |
|---|---|---|---|
| SuperVu Galilean 2.0x | 2.0 x | 34 cm | 11.4 cm |
| 2.0 x | 46 cm | 15.2 cm | |
| SuperVu Galilean 2.5x | 2.5 x | 34 cm | 8.1 cm |
| 2.5 x | 42 cm | 10 cm | |
| 2.5 x | 46 cm | 10.9 cm | |
| 2.5 x | 50 cm | 11.8 cm | |
| SuperVu Galilean 3.0x | 3.0 x | 34 cm | 5.9 cm |
| 3.0 x | 42 cm | 7.1 cm |
| Ambient temperature | + 10 °C to + 35 °C |
| Relative humidity | 30 % to 90 % non-condensing |
| Air pressure | 800 hPa - 1060 hPa |
| Shock (without packing) | 10 g, duration 6 ms |
| Storage/ Transport temperature | - 10 °C to + 55°C |
| Storage/ Transport relative humidity | 10 % to 95 % non-condensing |
| Storage/ Transport Air pressure | 700 hPa - 1060 hPa |
| Vibration, sinusoidal | 10 Hz to 500 Hz: 0.5 g |
| Shock | 30 g, duration 6 ms |
| Bump | 10 g, duration 6 ms |
