CF-1 Digital Mydriatic Retinal Cameras

Name: mercooptical Optical Corp – Cf-1 Digital Mydriatic Retinal Cameras
Brand: mercooptical Optical Corp

RETINAL CAMERA Get More Information Inquiry About this product

The CF-1 provides high-resolution color, red free, and fluorescein angiography imaging performance and heightened efficiency for eyecare professionals.

Overview

The CF-1 Digital Mydriatic Retinal Camera is easy to use and efficient for both doctor and photographer. When used with a Canon EOS® digital SLR camera (sold separately), users can enjoy renowned Canon optical technology for superb imaging quality. User-friendly control software helps to ensure efficient workflow, potentially resulting in increased patient throughput. The CF-1 Digital Mydriatic Retinal Camera provides high-resolution color, red free, and fluorescein angiography imaging performance and heightened efficiency for eyecare professionals.

Features

Color, Red-Free, and Fluorescein Angiography Imaging

The CF-1 Digital Mydriatic Retinal Camera integrates a digital SLR camera from Canon's EOS series to achieve high resolution images with excellent detail, contrast, and color fidelity.
Easy Alignment and Focus
The 50-degree view angle enables easy alignment and focus with less flash flare, even with smaller pupil sizes. Only a low amount of light is needed to capture clear images.
2x Digital Magnification
Zoom the retina to 2x magnification and the system automatically crops out the peripheral edges of the image so the region of interest is larger in the frame.

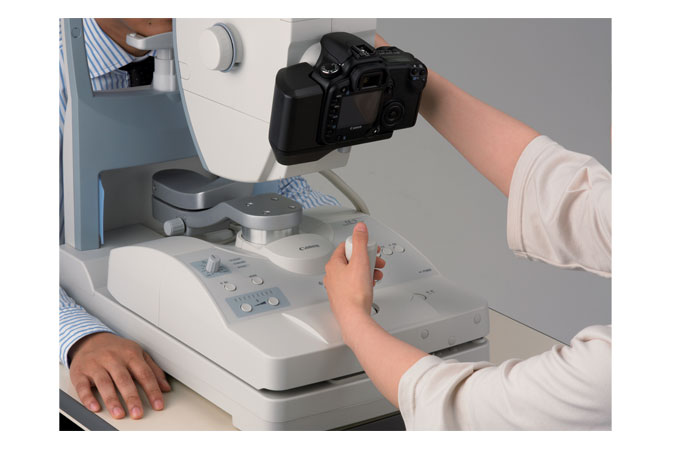

Ergonomic Control Panel
Operator controls for key features such as shutter release, lamp setting, ISO adjustment, and mode switching are grouped together for one-handed operations in darkened exam rooms.

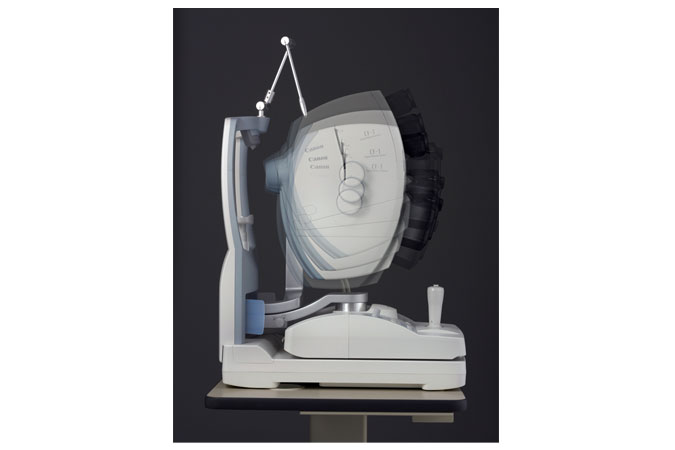

Pan & Tilt
Precise pan and tilt movements allow the operator to easily achieve views of the retina while reducing the need for patients to change their gaze.
Retinal Imaging Control Software
Using the Canon Retinal Imaging Control Software (RICS), images can be viewed, manipulated, sent to a DICOM storage device or stored as DICOM or JPEG images and sent to a printer. For more information, visit the Retinal Imaging Control Software webpage.
Printers and Projectors
If your imaging requirements include color or black-and-white prints in a variety of sizes, Canon printers offer the terrific blend of print quality, ease-of-use, speed, and cost-effective operation. For teaching facilities and conference rooms, Canon's high quality projectors provide LCOS (liquid crystal on silicon) technology, which is engineered to provide exceptional color, intricate details, and easy-to-read type.
Optional Accessories
Stereo unit

Internal eye fixation target

Specifications

Optional Accessories
	Stereo unit
	Internal eye fixation target
General
	Types of Imaging	Color, Red-Free, Fluorescein Angiography Stereo imaging (optional)
	Angle of view	50 degrees, 43 degrees (2x digital magnification)
	Minimum pupil size	5.2 mm (in SP mode 4.3 mm)
	Sensor Resolution	18.0 Megapixels
	Patient’s diopter	Without compensation lens: -10D to +15D With “-“ compensation lens: -7D to -31D With “+” compensation lens: +11D to +33D
	Light Source	Halogen lamp for observation, xenon tube for photography
	Eye fixation lamp	External type (standard) Internal type (optional)
Adjustments
	Base Adjustments	Forward/backward 65 mm Right/left 110 mm Up/down 30 mm
	Working Distance	35 mm
	Focus adjustments	Split lines focusing, working distance dots adjustment
	Panning Range	Right/left 30 degrees
	Tilting Range	Upward 15 degrees Downward 10 degrees
Electrical and Environmental
	Power Supply	AC 100-240V 50/60 Hz 7-3A
	Power Consumption	Normal approximately 100 VA Maximum 720 VA
	Operating Environment	Temperature 10 degrees C to 35 degrees C Humidity 30% RH to 80% RH (with no condensation)
Physical Characteristics
	Dimensions (W x D x H)	12.6 inches x 20.9 inches x 22.3 inches (320 mm x 531 mm x 566 mm)
	Weight	Approximately 57 pounds (26 kg)
